MEIXIN positioning Brush Making Machine series for household brush
1. MEIXIN Brush Making Machine is manufactured in mechanical rooms that are dedicated to mechanical equipment. It will go through stamping, CNC machining, and surface treating such as coating and lacquering.
2. The quality of this product is guaranteed to withstand a variety of rigorous tests.
3. This product is durable and suitable for long-term use and storage.
4. The use of this product will reduce employees' workload. It will lessen the need to perform monotonous manual tasks, allowing workers to focus on more important aspects of their jobs.
5. The product helps reduce the work burden. It keeps the employees refreshed and prevents them from burning out, which will help maintain business productivity.
A/ brand of motor in the machine
1.Delta inverter, Panasonic servo motor.
2.Taiwan TBI ball screw guide way and Taiwan HIWIN.
3.Schneider low voltage electrical appliances.
4.JAPAN CLOSE WITH BEARING.
5.Germany SENLIMA brake motor.
6.SHENZHEN ATECH controller.
B/Controller features:
1. its provided with manual data input as well as teach in data input method.
2. auto or step operation.
3. speed of drilling is controlled by inverter for various speed adjustment.
4. test mode to test machine if functions properly.
5. editing features of ,delete or copy.
6. Normal working or positioning testing.
7. drilling excessive pressure alarm.
8. production speed is adjustable.
C/special features:
1. FMX fixture allows fast change over for a new brush tufted production.
2. Independent 5aix motion ,suitable for any wooden or plastic brush handles drilling.
Company Features
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has been active in Brush Making Machine field for decades.
2. Over the years, our brand has been promoting in the international sector. Thanks to our products with various styles and complete variety, we have won recognization from many domestic and overseas consumers.
3. MEIXIN hopes to bring customers with best user experience for broom making equipment. Check it! Since its inception, JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has been adhering to the 'sustainable innovation, the pursuit of excellence' spirit of enterprise. Check it! High quality customer service of MEIXIN is highly commented by customers. Check it!

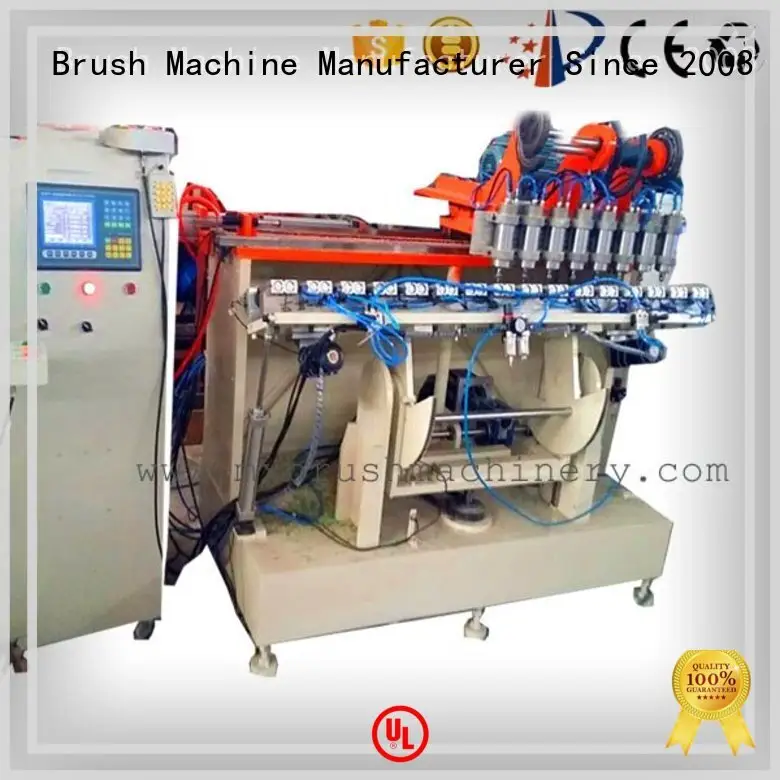

5 axis high efficiency automatic cleaning brush making machine
Technical characteristics:
1, Equipped with two drilling heads and one tufting head;
2, Equipped with two high speed drilling heads: hole diameter from Φ3.0mm up toΦ6.0mm, and tufting tools from min.Φ3.0mm up to Φ6.0mm;
3, Hair by: round nails or flat nails;
4, three types of platform can be chosen as follows:
Platform for radial, parallel and radial/parallel tufted brushes
Platform for bowl brushes and semi-spherical brushes
Platform for rollers and hair brushes
5, PLC and Touch Panel Control System, displays in either Chinese or English;
6, Allow saving as 2000 procedure and easy for the creation of new models;
7, our machine can produce either one color or two color brush, and also drilling or tufting separately.
8, setting of worktable: high-precision straight-line rail and ball screw, steady and durable.
9, Material of Brush Handle: Poly styrene, return materials, wood
10, Material of filaments: PP, PET, PVC, and STEEL WIRE
11, Application: To make varieties of toilet brush and radial brushes
12, High Speed Motor: Delta High-Speed Motor
13, AC motor: Delta Brake Motor
14, Type & Brand of Drive/Motor: Delta servo motor by default, can adopt some brand motor & driver requested by users.
15, Adjust Speed: Frequency-conversion stepless-adjustable speed
16, Replaceable Fixture: FMS type. It can be easily changed to make other kinds of brushes.
17, Head mode: Anchor or Staple
18, Program System: CNC system, high precision, stability and efficiency
Technical parameters
Maximum production speed | 450 holes/minute |
The maximum filament length | 240mm |
Dia. Of tufting holes | Φ3.0mm-φ6.0mm |
Machine size | 2.5m*1.4m*1.98m (L*W*H) |
Power consumption | 3000W |
Driving motor | AC Servo Motor |
Power Supply | Three-phase 380V |
Weight(gross weight) | 2.5 Ton |
Automatic Nail Making Machine
This new type machine adopts plunger and oil pipe lubricating structure, to ensure the high working speed, low noise and less impact. It has the features of advanced design, compact confirmation, and attractive appearance. It is easy and safe to operate.
A leader in this industry, specializing in brush making machine line for more than 37 years.
