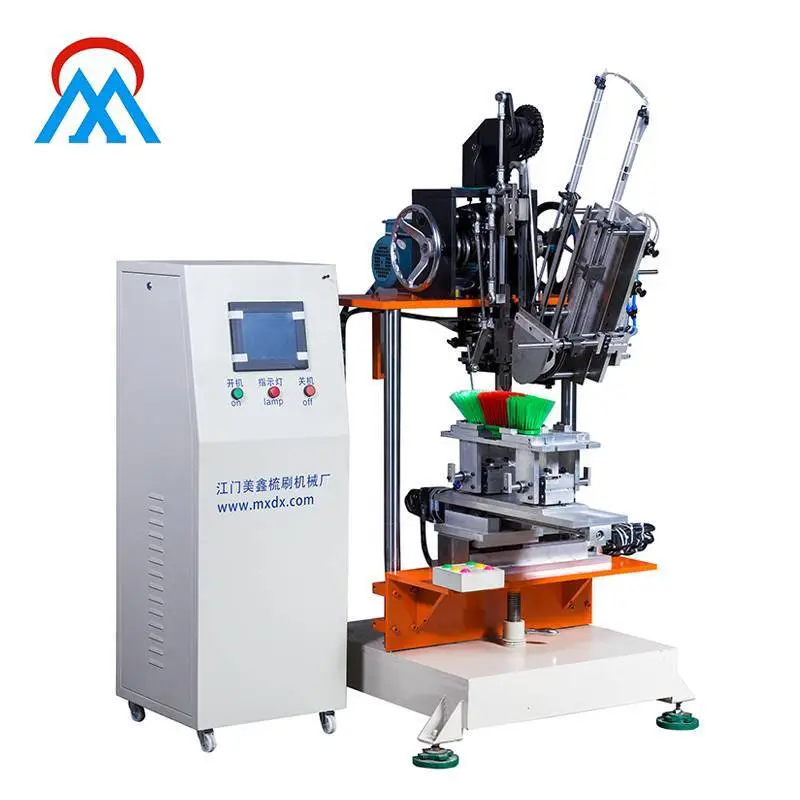

2Axis Brush Making Machine
SPECIAL FEATURES
❶ With one tufting heads, independent 2 axis motion, it used for the ONLY flat brush machines. Be sure that the plastic head or block should be with the holes inside.
❷ The speed is in 7-8 holes/sec. High productivity: 2500 pcs around
❸ 2.FMX fixture allows fast change over for a new brush tufted production.
❹ This machine with the new design of tufting, easy operate.
❺ With the 5.7 touch display, it can work with the Chinese or English. Can be save 2000 pcs program.
❻ You can produce this machine in the flat brooms , clothes brooms and others.
PRODUCT PARAMETER
| Description: | |
| Model | MX-2AT001 |
| NO.of axis | 2 axis |
| Qty of heads | 1 tufting |
| Application | Flat brush, broom |
| Brush types | Flat brush base with holes |
| Brush base materials | Plastic, wood |
| Filament materials | PP, PET, Nylon, animal hair plant fiber etc. |
| The mold fixture size | 300*50mm |
| Diameter of hole | 4~6mm |
| The length of filament (outside the hole) | 15~400mm |
| Colors of Brush Filaments | 2 colors |
| Parameter: | |
| Tufting Speed | 4~6 holes/sec. |
| Power voltage, frequence | 220/380v, 50/60HZ (customer choose) |
| Main motor power | 0.75kw |
| Air Source Input | 0.4~0.5Mpa |
| Equipment size | 1000*1100*1700mm |
| Weight | 600kg |
| Electrical parts: | |
| Control System (PLC) | MEIXIN Chinese and English version |
| Touch screen | MEIXIN Chinese and English version |
| Main motor | SNMA |
| Servo motor | Maxsine |
| Relay | IDEC (Janpan) |
| Variable-Frequency | DELTA (Taiwan) |
| Safety Protection: | Schneider (France brand) |
B/CONTROLLER FEATURES
A leader in this industry, specializing in brush making machine line for more than 37 years.
