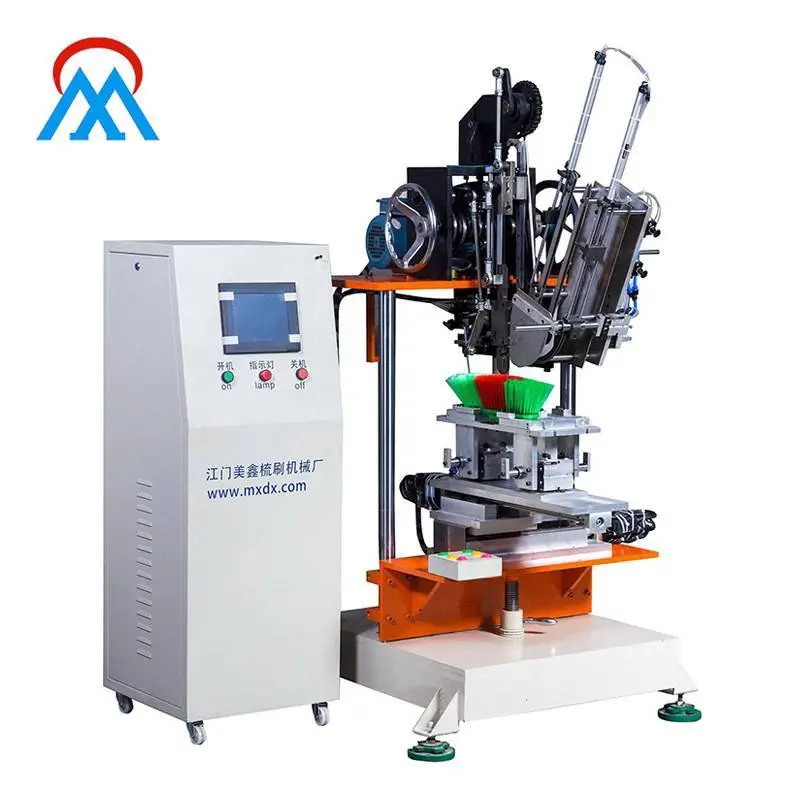

2 Axis Broom Tufting Machine Clothes Brushes
SPECIAL FEATURES
❶ With one tufting heads, independent 2 axis motion ,it used for the ONLY flat brush machines. Be sure that the plastic head or block should be with the holes inside.
❷ The speed is in 7-8 holes/sec. High productivity: 2500 -2800pcs around.
❸ 2.FMX fixture allows fast change over for a new brush tufted production.
❹ This machine design for the snow brushes, other side of the brushes.
❺ With the 5.7 touch display, it can work with the Chinese or English. Can be save 2000 pcs program.
❻ You can produce this machine in the, clothes brooms and others.
PRODUCT PARAMETER
| Travel of x axis | 300mm |
| Travel of y axis | 300mm |
| Voltage | 220v or 380v |
| Dia of holes | 5-7 holes/sec |
| Dia of fiber | 0.2 -1 mm |
| Fiber box | 3 colors |
| Filament outside holes | 30-50mm |
| Type of handle | Cylindrical shapen, with flat and curved surface |
| Productivity | 2000pcs/ 10 hours |
| Material of filament | Pp, nylon, wire, stainless steel, wire, bristles. |
| Plc size | 5.7inch (Chinese & English) 50-60HZ |
| Data input for tufting | Teach-mode or digits type |
| Transactio n mothed | Exw, fob, cif, cfr |
| Payment details | 40% prepay by t/t, 60% pay by t/t before shipment. |
| Delivery time | Within 45 days after receive the deposit |
| Warranty | Controller is one year, others part of machine engineer available to send to there to repair the machines. |
| Spare parts | Tufting needles: 5 pcs, hair mouth: 3 sets, cutter: 2 sets, pulling knife: 2 pcs, alloy: 2 pcs. |
| Machine size | 1200*800*1500mm |
B/CONTROLLER FEATURES
A leader in this industry, specializing in brush making machine line for more than 37 years.
