top quality brush making machine inquire now for PET brush
1. The design of MEIXIN Industrial Roller Brush And Disc Brush Machines is elaborately designed with the combination of functionality and aesthetics.
2. This product is examed on the international standards instead of the national rules.
3. brush making machine has excellent performance, stable and reliable quality.
4. The product acts flexibly to the changing working requirements. People can change its operation modes to meet specific needs.
5. The product only needs limited human supervision, which will directly contribute to reducing manpower and finally help save labor costs.
special features:
1.With the 1 drilling and 1 tufting heads.MX201 its designed for the industrial roller brush for the road and others industrial used. The length of roller brushes are available to make according to customers requirement.
2.It can be drilling ,tufting at the same time.
3.you can tuft the machine with abrasive， PP,PET, bristle,others.
4. Independent 3 axis motion ,simple, stable.
6. Perfect design, wont be miss the holes and get high productivity.
A/ brand of motor in the machine
1.Delta inverter, Panasonic servo motor.
2.Taiwan TBI ball screw guide way and Taiwan HIWIN.
3.Schneider low voltage electrical appliances.
4.JAPAN CLOSE WITH BEARING.
5.Germany SENLIMA brake motor.
6.SHENZHEN ATECH controller.
B/Controller features:
1. its provided with manual data input as well as teach in data input method.
2. auto or step operation.
3. speed of drilling and tufting is controlled by inverter for various speed adjustment.
4. test mode to test machine if functions properly.
5. editing features of ,delete or copy.
6. Normal working or positioning testing.
7. drilling and tufting excessive pressure alarm.
8. production speed is adjustable.
Company Features
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY supplies brush making machine within our client's value chain.
2. We are proud to have an experienced workforce. From choosing precise raw materials to executing the most efficient production processes, they have an excellent track record of quality control.
3. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has always been committed to becoming the most popular Industrial Roller Brush And Disc Brush Machines supplier. Check it! Achieving constant improvements in product quality and service is JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY's ultimate goal. Check it! All the staff of MEIXIN BRUSH MAKING MACHINE FACTORY will make unremitting efforts, and bravely climb the peak of brush making machine industry. Check it!

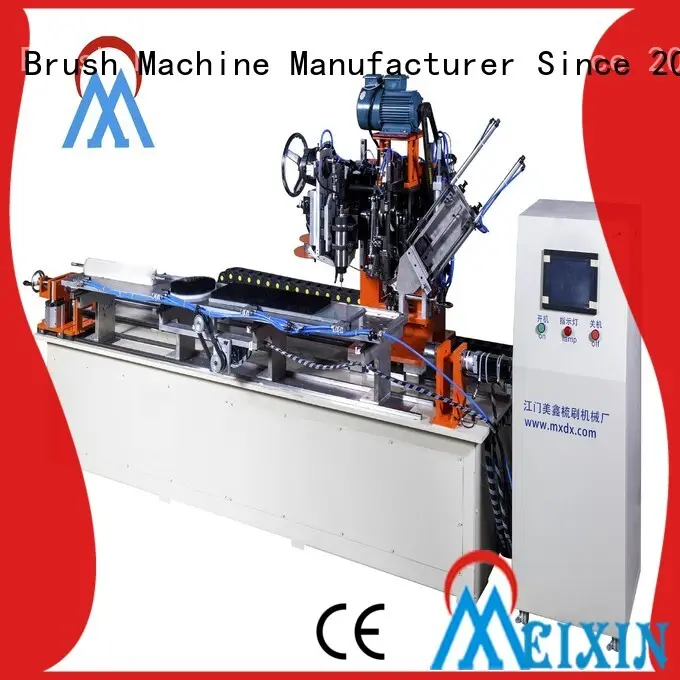

BM-CNC5ZK05H brush tufting and drilling machine
BM-CNC5ZK05H 5 Axes 5-Head Brush Drilling And Tufting Machine Making Brushes Example:
BM-CNC5ZK05H 5 Axes 5-Head Brush Drilling And Tufting Machine Detail Description:
| Model | BM-CNC5ZK05H 5 Axes 5-Head Brush Drilling And Tufting Machine |
| NO. of axis | 5-axis |
| Qty of heads | 5 Heads,3 drilling heads and 2 tufting heads. |
| Setting of Worktable | high-precision straight-line rail and ball screw,steady and durable. |
| Material of Brush Handle | Polyethylene, polystyrene, return materials, wood |
| Material of filaments | PP,nylon,bristle,stainless steel,brass wire |
| Diameter of filaments | 0.08mm-0.7mm |
| Application | To make varieties of toilet brushes and radial brushes |
| The length of filament(outside the hole) | 15-110mm |
| Diameter of hole | 3.0mm-7.0mm |
| Colors of Brush Filaments | double colors |
| Maximum Drilling and tufting Speed | 450 holes/minutes |
| Max Speed | 15000n/min |
| High Speed Motor | Delta High-Speed Motor |
| AC motor | Delta Brake Motor |
| Type&Brand of Driver/Motor | Panasonic servo motor by default, can adopt some brand motor&driver requested by users. |
| Adjust Speed | Frequency-conversion stepless-adjustable speed |
| Replaceable Fixture | FMS type. It can be easily changed to make other kinds of brushes. |
| Head mode | Staple |
| Programme Storage | Store 2000 programme,each can imput 100 thousand processing data. |
| Program System | CNC system,high precision,stability and efficiency |
| Dimension(L*W*H) | 2320mm×1920mm×2220mm |
| Gross weight | 3000kgs |
| Power | AC three phases 380, 50Hz |
| Total power | 4KW |
| Compressed Air Pressure | 0.6-0.8Mpa |
BM-CNC5ZK05H 5 Axes 5-Head Brush Drilling And Tufting Machine Feature:
| 1.The computer system in this machine with PC IPC motherboards,586 industry computer | |
| 2 .With 10.4 inch colorful LCD screen,640*480 lattice | |
| 3 .The system adopt four-wire resistive touch screen,make the operating more convient and direct | |
| 4 .Convenient to adjust the hole position with the handwheel. | |
| 5 .Safe to operate.With alarming fuction ,the system will give an alam and stop to run when the machine fails. | |
| 6 .Full Featured,Editing functions of processing data,such as ADD,ALT,INSERT,DELETE, makes it convenient to solve these problems:the deviation of hole position, hole-repeating and hole-missing. | |
| 7 .Easy to operate and program. | |
| 8 .Large capacity,it can store 2000 programmes and each programme can imput 100,000 processing data. | |
| 9 .Convenient to find the specific program by choosing the program number. | |
| 10 .Standard designed circuit reduces the line interference and makes sure send the correct singal. | |
| 11 .You can confirm whether the hole postion is right by step test after the program is saved. | |
| 12 .Have three drilling head and two tufting head to produce different kinds of brushes,can make wide application, high processing speed and high production | |
| 13 .Can produce different types of bristles with different angle of the brush or broom through change different worktable. | |
| 14 .The worktable can be choosed: | |
| A:worktable for slope/vertical brush | |
| B:worktable for sphere round toilet brush and Hemispherical dish washing brush | |
| C:worktable for tubular industrial brush or hair brush | |
| 15 .The pin,filament cutting and all the other parts are made by standard ,it makes change and service more convient | |
| 16 .The machine can produce single or double colour brushes,can drilling holes or tufting the filament independent as you want. | |
| 17 .Spare parts are all made by our factory.It is very easy to replaceable. | |
| 18 .Equipped with central lubrication device. | |
| 19 .Security protect:Overload,short circuit protection |
A leader in this industry, specializing in brush making machine line for more than 37 years.
