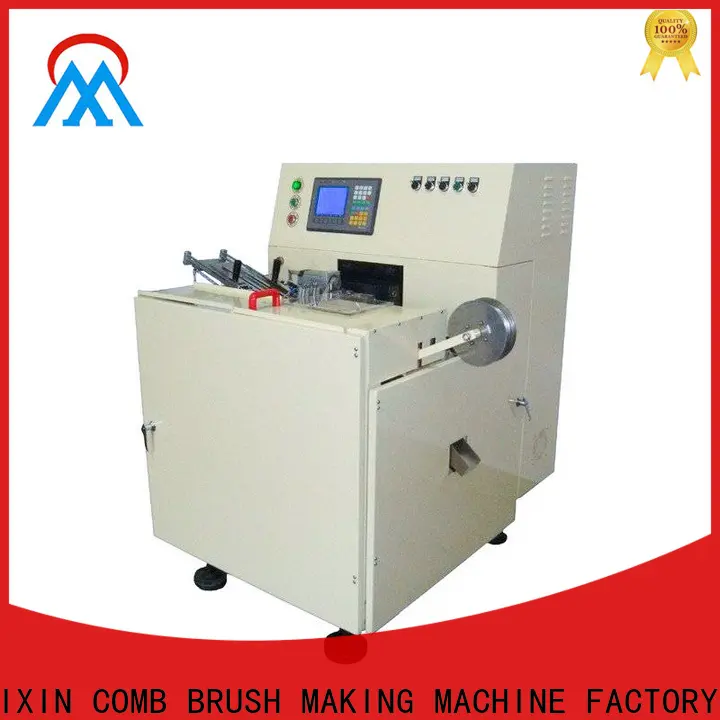

sturdy brush tufting machine design for industrial brush

Company Advantages
1. MX machinery brush tufting machine has passed the following function tests. It has to be tested in terms of mechanism cycling, actuators, and electrical checking.
2. The product is widely accepted by our customers with its fine applicability. If something wrong with the machine, Meixin engineers are available to provide service overseas
3. With the help of steel brush machine , you will find brush tufting machine easier to operate. Meixin supplies high-quality brush machine

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. As a leading brush tufting machine industry company, MX machinery is very proud.
2. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY may give you a competitive edge over other Brush Making Machine suppliers.
3. MX machinery has quick after-sales service to solve any problem about brush tufting machine. Check it!
