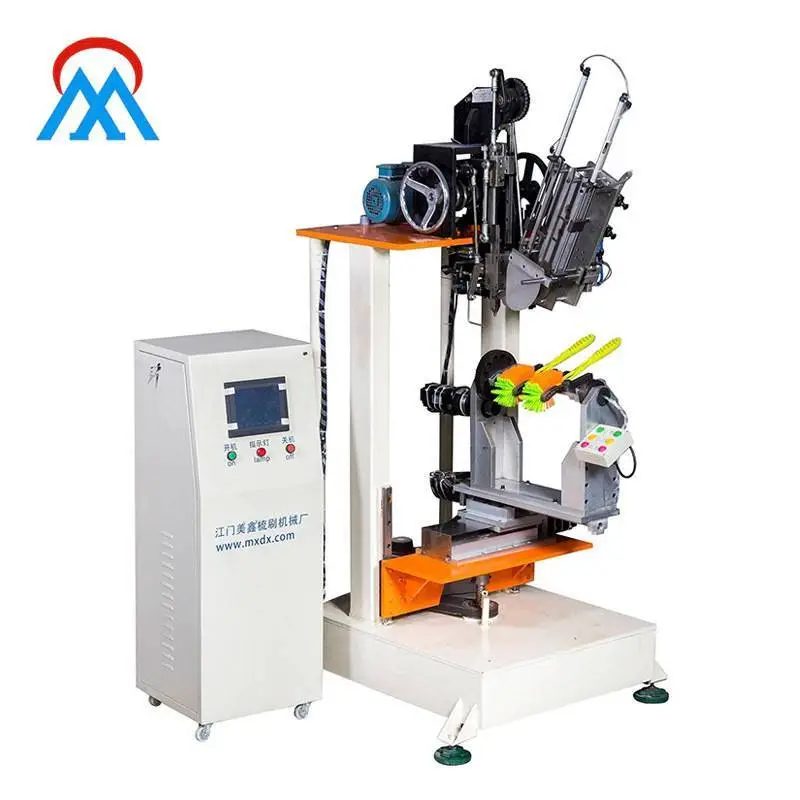

4 Axis Double Hockey Brush Tufting Machine
SPECIAL FEATURES
❶ With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.
❷ The filament outside hole can be 15-30mm.
❸ FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.
❹ This machine with the new design of tufting.easy operate.
PRODUCT PARAMETER
Item | Model | MX186 |
1 | Axis | 4-axis |
2 | The stroke of X | 50mm |
The stroke of Y | 25mm | |
3 | Tufting method | Aluminum |
4 | Hole diameter | 3-7mm |
5 | bristle container | Single or double colors |
6 | Application | To make toothbrush |
7 | The length of filament(divide) | 8-15mm |
8 | Maximum Tufting Speed | 9-10holes/second |
9 | Head motor | Servo motor |
10 | Main power input | 2 phase 220V, 3phase 380vor220V |
11 | Drive motor | Servo motor |
12 | Machine gross weight | 850kg |
13 | Material of brush handle | Plastic |
14 | Material of brush material | Nylon, PVC, PP, or other fiber |
15 | Colors of filaments | Either single color and 2 colors |
16 | Tufting method | Flat wire or round wire |
17 | Air imput | 1-8bar |
18 | Machine size | 1250*1300*1350mm |
19 | Controller gross weight | 100Kg |
20 | Productivity | 5000pcs/10 hours |
A/ brand of motor in the machine
1.
Delta inverter, Panasonic servo motor.
2.
Taiwan TBI ball screw guide way and Taiwan HIWIN.
3.
Schneider low voltage electrical appliances.
4.
Japan close with bearing.
5.
Germany SENLIMA brake motor.
6.
SHENZHEN ATECH controller
B/CONTROLLER FEATURES
A leader in this industry, specializing in brush making machine line for more than 37 years.
