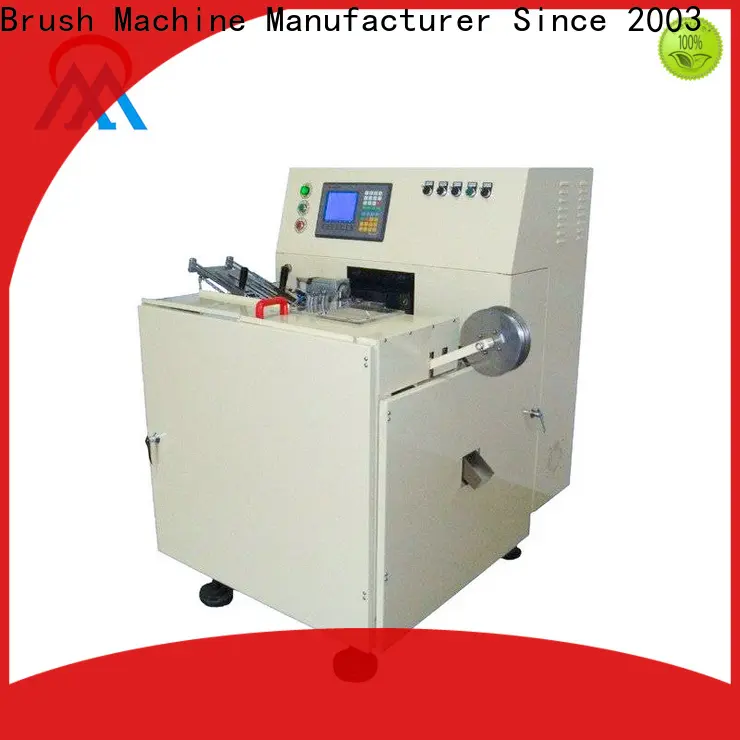

quality brush tufting machine design for household brush

Company Advantages
1. The quality of brush tufting machine's material always deserves great attention of company leaders. Meixin supplies high-quality brush machine
2. This product will finally contribute to the improvement in production efficiency. Because it can effectively eliminate human error during operation. Ease of installation is one of the most characteristics of Meixin products
3. The product has good deformation resistance. It will not be affected by a sufficient load from other objects, remaining its original shape. What's more, Meixin products are widely used in all kinds of brushes making
4. The product features high dimension accuracy. During the inspection stage, its sizes have been scrutinized and tested by different measuring tools to make sure zero dimension error. The quality of the products also has been strictly controlled by Meixin
5. The product has fine surfaces smoothness. The milling and polishing treatment has removed any surface defections such as burrs and sags. High efficiency acceleration engine are adopted to ensure the smooth running

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. Being a reliable manufacturer, JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has gained years of experience in the development, design, and production of steel brush machine .
2. Our quality assurance team is the backup of our business. They make sure the right processes complying with industry guidelines in place across the manufacturing operations, which allows us to provide significant products to satisfy customers' demands.
3. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY will, as always, adhere to the policy of brush making equipment. Call!
