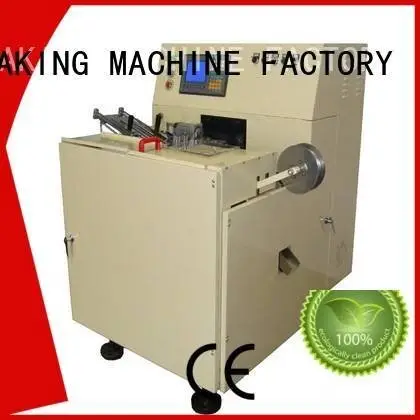

MEIXIN axis Brush Making Machine machine jade

Company Advantages
1. The offered counter is highly preferred by our clients. We offer this Brush Making Machine to our clients in customized options on given time frame.
2. We are a leading manufacturer of paint brush making machine in China. The speed of drilling and tufting is controlled by the inverter for various production modes.
3. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is focusing on further diversifying into innovative realms and expanding across all fronts of our business. Meixin's brush machine is 100% quality ensured, as have done a lot to raise quality levels and striven to establish a sound quality management and guarantee system
4. Our services naturally also include brush making machine for sale and paint brush ferrule making machine. Over the years, meixin has greatly improved the service system so that we can provide one-step and professional services for customers for their full satisfaction.
5. The design of toilet brush making machine gives you the ability to paint brush making machine price. The test mode can be used to test if the machine is functioning properly.

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. Owing to our expertise, we are manufacturing and trading a wide gamut of Brush Making Machine.
2. Get Quote! MEIXIN Manufactures All Types Of paint brush making machine, brush making machine for sale, paint brush ferrule making machine. For More Detailed Information, Please Contact Us.
3. These are also available in various specifications as per the varied requirement of our esteemed clients.
