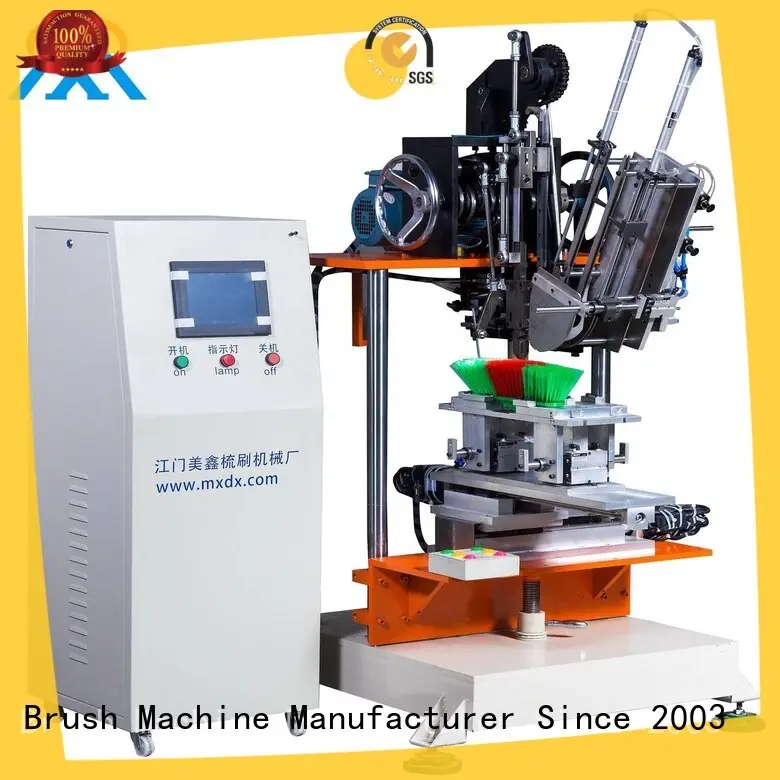

independent motion Brush Making Machine wholesale for industrial brush
- MEIXIN COMB BRUSH MAKING MACHINE has established a complete professional service system to provide quality services based on customer demand.
1. The offered MEIXIN plastic brush making machine is developed by a team of diligent professionals.
2. Our Brush Making Machine can work for non-stop 24 hours.
3. An experienced quality control team inspects the quality of this product.
4. Because of its continuous use, fewer technicians are needed for operation and oversight, which significantly helps cut overall labor expenses.
5. Using this product makes many dangerous and heavy-load works be done easily. This also helps relieve workers' stress and workload.
special features:
1. With one tufting heads, independent 2 axis motion ,it used for the ONLY flat brush machines. Be sure that the plastic head or block should be with the holes inside.
2. The speed is in 7-8 holes/sec .high productivity: 2500 -2800pcs around
3. 2.FMX fixture allows fast change over for a new brush tufted production.
4.This machine with the new design of tufting.easy operate.
5. With the 5.7 touch display, it can work with the Chinese or English. Can be save 2000 pcs program.
6. you can produce this machine in the ,clothes brooms and others.
B/Controller features:
1. its provided with manual data input as well as teach in data input method.
2. auto or step operation.
3. speed of tufting is controlled by inverter for various speed adjustment.
4. test mode to test machine if functions properly.
5. editing features of ,delete or copy.
6. Normal working or positioning testing.
7. tufting excessive pressure alarm.
8. production speed is adjustable.
Company Features
1. MEIXIN offers higher quality Brush Making Machine in this industry which expects much.
2. Our marketing network is extensive and broad scope in the world, delivering products and services through a network of independent dealers. This network has helped increased sales volume significantly.
3. Our business philosophy: "To give the best service, make the best quality products". We will stand firm in the market by providing outstanding product quality. We intend to provide our customers with the best products and service possible, through continuous improvement. We ensure that our products and services consistently meet customer’s requirements.
| BM-CNC4Z02Q | 4 Axes CNC Round Toilet Brush Tufting Machine | |
| Item | Model | BM-CNC4Z02Q |
| 1 | NO. of axis | 4-axis |
| 2 | The stroke of X axis | 200mm,provide flexible customize for customer. |
| The stroke of Y axis | 150mm ,provide flexible customize for customer. | |
| The swing angle of A axis | 90° | |
| The swing angle of B axis | 360° | |
| 3 | Setting of Worktable | high-precision straight-line rail and ball screw,steady and durable. |
| 4 | Material of Brush Handle | Polyethylene, polystyrene, return materials, wood, nylon. |
| 5 | Material of Filaments | PP,PET,PVC,STEEL WIRE |
| 6 | Application | To tuft varieties of round toilet brushes |
| 7 | Diameter of Filaments | 0.08mm-1.2mm |
| 8 | The length of filament(outside the hole) | 35mm-70mm |
| 9 | Diameter of hole | 2mm-8mm |
| 10 | Colors of Brush Filaments | single color or double colors |
| 11 | Maximum Tufting Speed | 4~6 holes/second |
| 12 | AC motor | Delta Brake Motor |
| 13 | Type&Brand of Driver/Motor | stepper motor&driver , can adopt some brand motor&driver requested by users. |
| 14 | Adjust Speed | Frequency-conversion stepless-adjustable speed |
| 15 | Replaceable Fixture | FMS type. It can be easily changed to make other kinds of brushes. |
| 16 | Head mode | Staple |
| 17 | Programme Storage | Store 2000 programmes,each can imput 100 thousand processing data. |
| 18 | Program System | CNC system,high precision,stability and efficiency |
| 19 | Dimension(L*W*H) | 850×850×1400mm |
| 20 | Gross weight | 650KG |
| 21 | Power | Single-phase 220v , 3-phase 220v or3-phase 380v, 50-60Hz |
| 22 | Total power | About 800w |
| 23 | Compressed Air Pressure | 0.6-0.8Mpa |
| Features of 4 axis cnc toilet brush tufting machine | ||
| 1 | With 5.7 LCD screen,Chinese and English interface. | |
| 2 | Supports data switching.The controller can be used as a U-Disk,and it also can be connected with U-Disk. | |
| 3 | Convenient to adjust the hole position with the handwheel. | |
| 4 | Long life , nice feel,and reliable keypad. | |
| 5 | Safe to operate.With alarming fuction ,the system will give an alam and stop to run when the machine fails. | |
| 6 | Full Featured, Editing functions of processing data, such as ADD, ALT,INSERT,DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing. | |
| 7 | Easy to operate and program. | |
| 8 | Large capacity,it can store 2000 programmes and each programme can imput 100,000 processing data. | |
| 9 | Convenient to find the specific program by choosing the program number. | |
| 10 | Standard designed circuit reduces the line interference and makes sure send the correct singal. | |
| 11 | You can confirm whether the hole postion is right by step test after the program is saved. | |
| 12 | Reasonable designed mechanical part position makes the machine good features. | |
| 13 | Standard spare parts offered. | |
| 14 | Spare parts are all made by our factory.It is very easy to replaceable. | |
