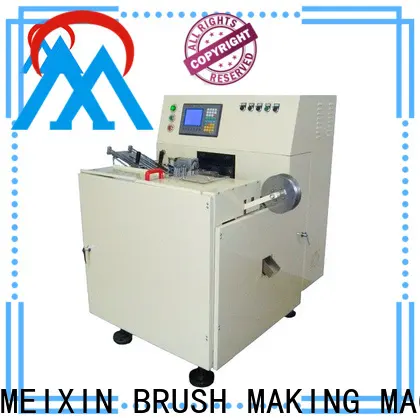

high productivity brush tufting machine factory for household brush1

Company Advantages
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY uses steel wire brush machine technology effectively maximize the service life of brush tufting machine. Meixin innovative ability enables to constantly develop new products
2. This product helps increase overall productivity. This means that it can help increase profits and cut labor costs in the meanwhile.
3. The product stands out for its dimensional stability. It can maintain the original pleating and don't easily shrink or elongated. Wearing parts and spare parts are of standardized design
4. The product dehydrates the food evenly and thoroughly. During the drying process, heat conduction, and radiant heat transfer are perfectly utilized to ensure the hot air fully contacts with the food. What's more, Meixin products are widely used in all kinds of brushes making

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is equipped with a full set of imported equipment and advanced manufacturing technology.
2. Our company will stick to the high standards of professional conduct, and to ethical and fair business dealings with our customers to achieve long-term success.
