brush making machine design for bristle brush MEIXIN
- MEIXIN COMB BRUSH MAKING MACHINE is capable of providing customers with high-quality products and thoughtful services relying on the professional service team.
1. The ingredients of MEIXIN Industrial Roller Brush And Disc Brush Machines are sourced from a prestigious supplier who adopts the highest standards in the beauty makeup industry.
2. The product has a high solar energy transformation rate. The adjustable solar panel bracket helps it achieve optimal solar exposure.
3. The product will enable one to boost the aesthetics of his space, creating a more professional environment for any event.
special features:

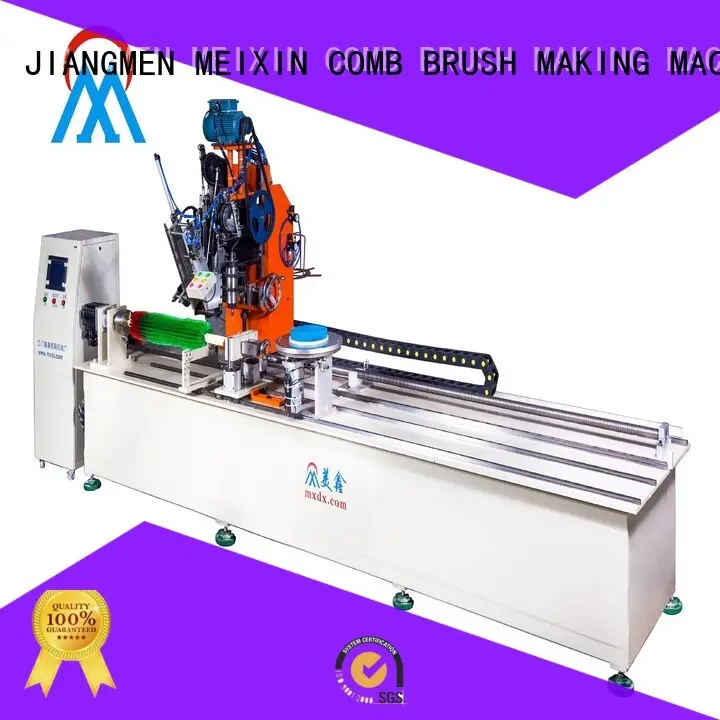

1.With the 1 drilling and 1 tufting heads.MXR201 its designed for the industrial roller brush for the road and others industrial used. The length of roller brushes are available to make according to customers requirement.
2.IT DESIGNER FOR small holes 3mm-6mm. can be drilling ,tufting at the same time.
3.you can tuft the machine with abrasive，PP,PET, bristle,others.
4. Independent 3 axis motion ,simple, stable.
6. Perfect design, wont be miss the holes and get high productivity.
A/ brand of motor in the machine
1.Delta inverter, Panasonic servo motor.
2.Taiwan TBI ball screw guide way and Taiwan HIWIN.
3.Schneider low voltage electrical appliances.
4.JAPAN CLOSE WITH BEARING.
5.Germany SENLIMA brake motor.
6.SHENZHEN ATECH controller.
B/Controller features:
1. its provided with manual data input as well as teach in data input method.
2. auto or step operation.
3. speed of drilling and tufting is controlled by inverter for various speed adjustment.
4. test mode to test machine if functions properly.
5. editing features of ,delete or copy.
6. Normal working or positioning testing.
7. drilling and tufting excessive pressure alarm.
8. production speed is adjustable.
Company Features
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has long been dedicated to the industry of brush making machine.
2. It is widely known that quality for brush making machine in JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is the best.
3. With the development of China's market economy, JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY vigorously implement the strategy of internationalization and diversification. Inquire! MEIXIN has a great goal and is a thriving Industrial Roller Brush And Disc Brush Machines supplier. Inquire!
| Description: | |
| Model | MX-5ADT002 |
| NO. of axis | 5axis |
| Qty of heads | 2drilling and 1 tufting |
| Application | variety shape brush and brooms |
| brush types | customized |
| Brush base materials | Plastic, wood |
| Filament materials | PP,PET, Nylon,animal hair plant fiber etc. |
| Dimeter of the disc | ≤500mm; 600~800mm |
| Diameter of hole | 4~6mm |
| The length of filament(outside the hole) | 20~110mm |
| Colors of Brush Filaments | 2 colors |
| Parameter: | |
| Drilling and tufting Speed | 4~6 holes/sec. |
| Power voltage, frequence | 220/380v , 50/60HZ (customer choose) |
| Main motor power | 2.5kw |
| Air Source Input | 0.4~0.5Mpa |
| Equipment size | 1700*1500*1800mm |
| Weight | 1200kg |
| Electrical parts: | |
| Control System(PLC) | MEIXIN Chinese and English version |
| Touch screen | MEIXIN Chinese and English version |
| Main motor | SNMA |
| Servo motor | Maxsine |
| Relay | IDEC (Janpan) |
| Variable-Frequency | DELTA (Taiwan) |
| Safety Protection: | Schneider (France brand) |
A leader in this industry, specializing in brush making machine line for more than 37 years.
