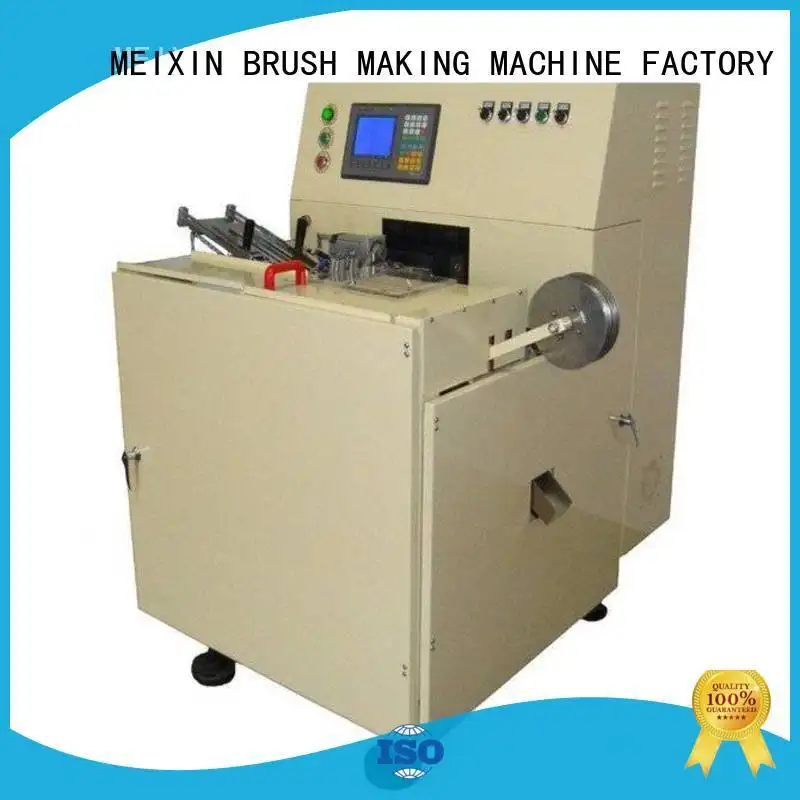

brush making equipment for household brush MEIXIN

Company Advantages
1. We update brush tufting machine with modern technology frequently, making it brush making equipment.
2. It is not susceptible to wrinkles, which can distort images. Its fabric’s weave type dictates this natural wrinkle resistance.
3. This product is antibacterial. It is multi-layer sterilized and its design is smooth and flat, providing no living space for bacteria.
4. People will know that it becomes softer and more pleasant to use or wear over time even it is washed for many times.

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. Being the state-designated comprehensive manufacture of brush tufting machine, JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is a production base of brush making equipment in China.
2. There are many old customers for MEIXIN because of its stable high quality.
3. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY regards 'The Best Service Enterprise of Global Professional Brush Making Machine ' as its development vision. Inquire online! JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY aims to become your most intimate partner with high-quality technology and services! Inquire online! Upholding brush making machine for sale proves to be the source of new impetus for the sustained and healthy development of MEIXIN. Inquire online!
