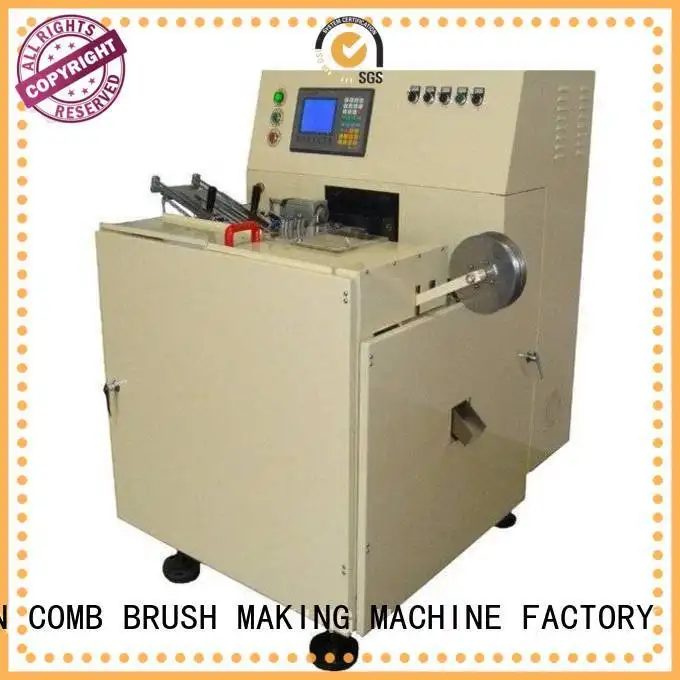

brake motor Brush Making Machine pressure alarm for industry MEIXIN

Company Advantages
1. Compliance with recognized safety standards is necessary for MEIXIN steel brush machine to be recognized. These can be in the form of test reports from recognized testing laboratories.
2. The product features withstand enough pressure. It includes lots of compartments of various sizes. These compartments can effectively spread the weight around.
3. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone.

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is a hi-tech Brush Making Machine manufacture integrating R&D, production and sales.
2. MEIXIN has been always paying attention to the technological innovation.
3. We aim to be the leading provider in China. We have developed a detailed strategy to help us achieve this goal by standing out from the industry and providing the best services. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY aims to become a leader in the steel brush machine industry. Contact! We further fulfill our global mission and commit to sustainability and sustainable practices. We implement green production, energy efficiency, emissions reduction, and environmental management to achieve sustainable operations. Contact!
