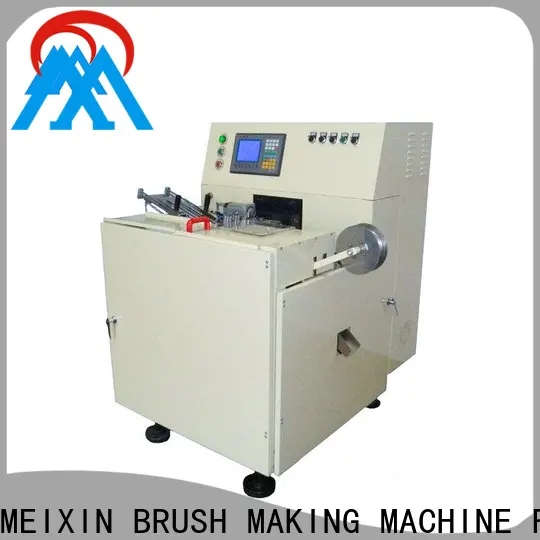

MX machinery professional brush tufting machine inquire now for broom

Company Advantages
1. brush tufting machine is designed as steel brush machine and it provides steel wire brush machine solution.
2. [企业简称] With multiple intelligent assembly lines and multiple professional production equipment, the production efficiency is high, the supply capacity is strong, and the production tasks can be completed with quality and quantity. In addition, we have also formulated a perfect quality management system, which can Guarantee that the produced brush tufting machine are all high-quality and qualified accessories.
3. brush tufting machine The materials used are free from toxic and harmful substances, and have been processed through special processes. The finished product not only has excellent wear resistance, oil resistance, impact resistance, etc., but also is environmentally safe and guaranteed.
4. brush tufting machine Not only is it excellent in workmanship, stable in operation and stable in quality, but also has excellent properties such as wear resistance, corrosion resistance, high temperature resistance, and oxidation resistance. The quality is guaranteed and it has a very competitive advantage in the market.

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is equipped with professional team to produce high quality brush tufting machine. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY keeps optimizing its manufacturing process to improve quality for Brush Making Machine .
2. By applying traditional and modern technology, the quality of brush tufting machine is superior than similar type of products.
3. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is equipped with the industry brush tufting machine development and manufacturing capabilities. Becoming one of the leading steel brush machine manufacturers is the hope of MX machinery. Check now!
