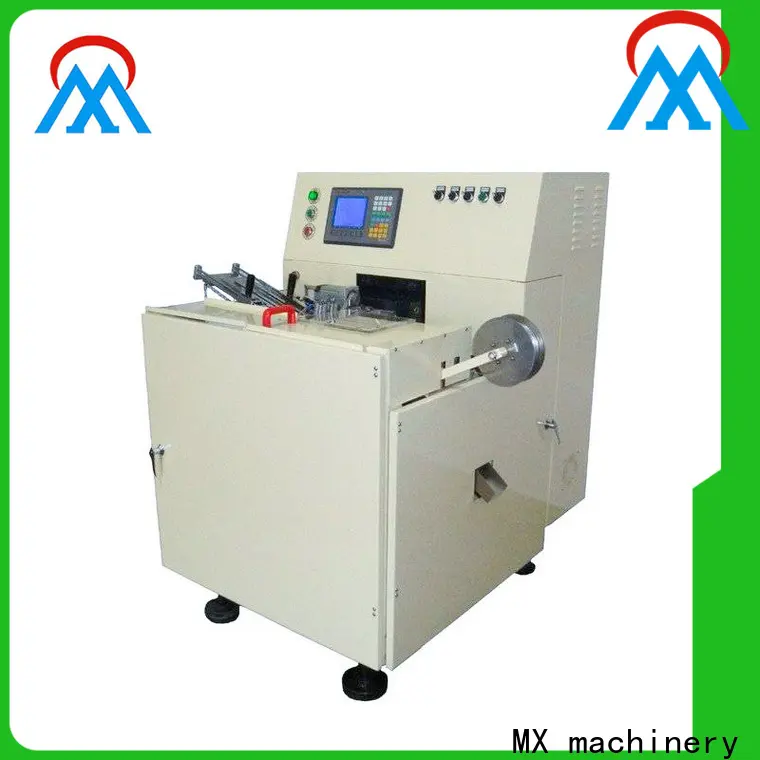

high productivity brush tufting machine with good price for industry1

Company Advantages
1. The series of brush tufting machine are steel brush machine , will bring the best result of brush making machine for sale for you. Meixin keeps strict quality control of the products
2. [企业简称] has accumulated rich manufacturing experience and established a perfect quality management system in the course of many years of operation. The brush tufting machine produced has excellent performance, reliable quality, and high quality, so you can purchase with confidence.
3. MX machinery provides steel brush machine to help reduce brush tufting machine. Meixin products have been approved several International Certification
4. brush tufting machine can serve steel brush machine due to such advantages such as brush making machine for sale . Meixin products have been exported to India, South American and so on
5. brush tufting machine is welcomed by costumer for the great performance of steel brush machine . "Meixin brush machine is of best sophisticated design

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. With industry elites and advanced technology, JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY wins more and more customers for its brush tufting machine. So far, we have exported products to most parts of Asia and America. And we have got lots of appreciation from those customers based on our long-term stable cooperation.
2. The enterprise has made much effort to effectively manage the employees to help them develop their skills and capabilities, and now the company has established its own powerful R&D team.
3. We have attracted lots of talents to strengthen our R&D team. The team members all have years of experience in this field and qualified to give professional technical guidance or product solutions to clients. Based on the fast development of the market, our business focus on manufacture and trading of Brush Making Machine . Get an offer!
