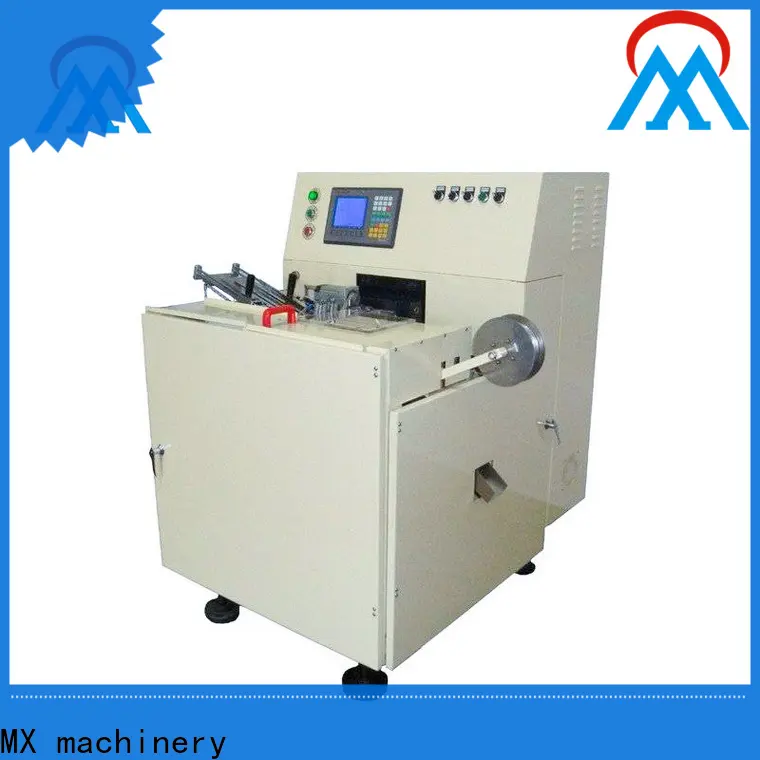

high productivity brush tufting machine with good price for industrial brush

Company Advantages
1. Fine materials: MX machinery brush tufting machine is manufactured based on high quality raw materials which are supplied by our reliable partners. These partners are all well-selected by us. "Meixin brush machine is of best sophisticated design
2. This product can flexibly adapt to the changing working requirements. It can meet the specific needs and workload. What's more, Meixin products are widely used in all kinds of brushes making
3. Being tested by the advanced testing equipment, the product quality is assured. Professional pre and after-sales service are also provided by Meixin
4. Multiple times of quality tests will be conducted to ensure the product meets the industry quality standards. Meixin's products cover various sizes of machines and are popular among customers with computer screen display
5. This product is tested on a set of norms prior to final delivery of the order. Wearing parts and spare parts are of standardized design

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has made great achievements in producing brush tufting machine of exquisiteness.
2. MX machinery has its own high-tech labs to manufacture Brush Making Machine .
3. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is always on the road of excellence for brush tufting machine. Ask online!
