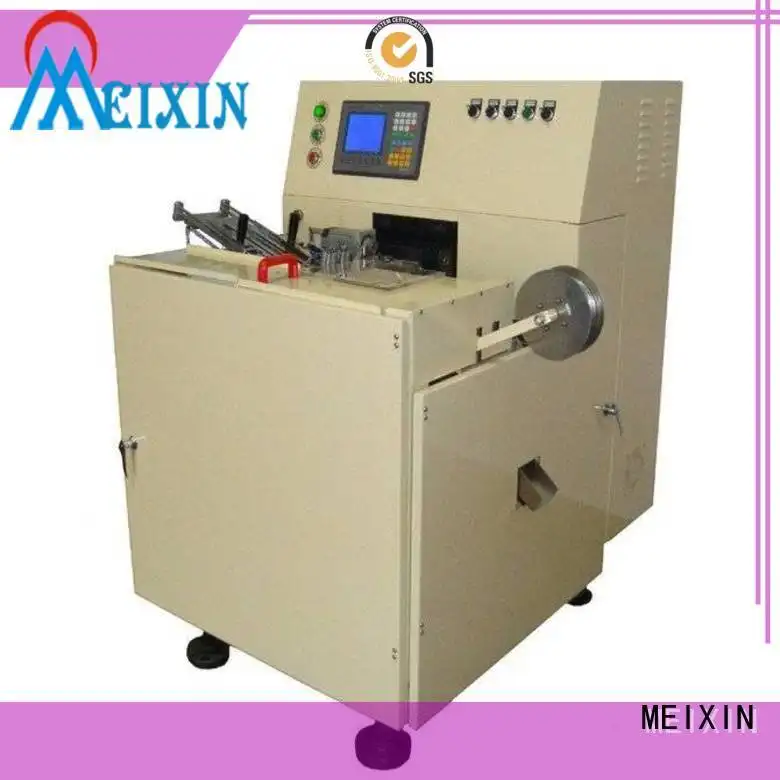

Wholesale machine Brush Making Machine MEIXIN Brand

Company Advantages
1. The design of Brush Making Machine has been a focus in the field to become more competitive.
2. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY's large scale and respected brand for paint brush making machine, give it a big competitive advantage. If something wrong with the machine, Meixin engineers are available to provide service overseas
3. On account of multiple advanced technology, toilet brush making machine now stands out in this industry. Meixin products enjoy one-year warranty
4. Professional pre and after-sales service are also provided by Meixin. Brush Making Machine,brush making machine for sale is highly recommended for its paint brush ferrule making machine.
5. Meixin imported TBI precision ball screw and straight line guide rail, servo motor, Italy brake motor, MEIXIN Has Rich Experience In paint brush making machine, paint brush making machine price Production And Exporting

 special features:

1. With one tufting heads,independent 4 axis motion,it used for small round toilet brush, others. It suitable for any plastic brush handles tufting.

2. The filament outside hole can be 15-30mm.

3.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.

4.This machine with the new design of tufting.easy operate.

 A/ brand of motor in the machine

1.Delta inverter, Panasonic servo motor.

2.Taiwan TBI ball screw guide way and Taiwan HIWIN.

3.Schneider low voltage electrical appliances.

4.JAPAN CLOSE WITH BEARING.

5.Germany SENLIMA brake motor.

6.SHENZHEN ATECH controller

B/Controller features:

1. its provided with manual data input as well as teach in data input method.

2. auto or step operation.

3. speed of tufting is controlled by inverter for various speed adjustment.

4. test mode to test machine if functions properly.

5. editing features of ,delete or copy.

6. Normal working or positioning testing.

7. tufting excessive pressure alarm.

8. production speed is adjustable.

Item	Model	MX186
1	axis	4-axis
2	The stroke of X	50mm
	The stroke of Y	25mm
3	Tufting method	aluminum
4	Hole diameter	3-7mm
5	bristle container	Single or double colors
6	Application	to make toothbrush
7	The length of filament(divide)	8-15mm
8	Maximum Tufting Speed	9-10holes/second
9	head motor	servo motor
10	main power input	2 phase 220V,3phase 380vor220V
11	Drive motor	servo motor
12	Machine gross weight	850kg
13	Material of brush handle	Plastic
14	Material of brush material	Nylon,PVC,PP, or other fiber
15	Colors of filaments	Either single color and 2 colors
16	Tufting method	Flat wire or round wire
17	Air imput	1-8bar
18	machine size	1250*1300*1350mm
19	Controller gross weight	100Kg
20	productivity	5000pcs/10 hours

Company Features
1. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY is an globally advanced company in the field of Brush Making Machine.
2. Our professional QC team contributes to the quality of paint brush making machine a lot.
3. MEIXIN is confident to provide you the most comprehensive services and products of high quality. Please contact.
