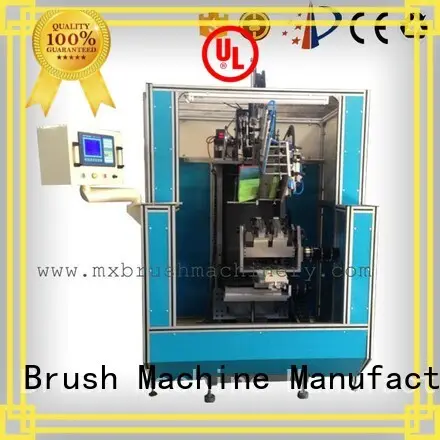

MEIXIN professional Brush Making Machine design for industrial brush
- MEIXIN COMB BRUSH MAKING MACHINE always adheres to the service concept of 'quality first, customer first'. We return society with high-quality products and thoughtful services.
1. Fine workmanship: MEIXIN brush making machine for sale is crafted by skillful and experienced workers who aim at producing high quality products and use their skills to perfect the product.
2. The product has a long-lasting excellent performance and strong usability.
3. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY always focusing on Brush Making Machine solutions that fit our customer’s needs.
4. Our Brush Making Machine are of great performance for its highest quality.
A/ brand of motor in the machine.
1.Delta inverter, Panasonic servo motor.
2.Taiwan TBI ball screw guide way and Taiwan HIWIN.
3.Schneider low voltage electrical appliances.
4.JAPAN CLOSE WITH BEARING.
5.Germany SENLIMA brake motor.
6.SHENZHEN ATECH controller
B/Controller features:
1. its provided with manual data input as well as teach in data input method.
2. auto or step operation.
3. speed of tufting is controlled by inverter for various speed adjustment.
4. test mode to test machine if functions properly.
5. editing features of ,delete or copy.
6. Normal working or positioning testing.
7. tufting excessive pressure alarm.
8. production speed is adjustable.
C/special features:
1. With one tufting heads,independent 4 axis motion ,it used for the any shape pf brooms. Like flat brooms and other shape of brooms. It suitable for any wooden or plastic brush handles tufting.
2.FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.
3.This machine with the new design of tufting.easy operate.3 colors.
4. With the 5.7 touch display, it can work with the Chinese or English.
Company Features
1. The production technology is very advanced in JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY.
2. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has strong designing capability and advanced production technology for Brush Making Machine production.
3. There are a big sample display room in JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY. Get price! MEIXIN adheres to the development line of brush tufting machine, seizing the opportunities of the times. Get price! The goal of MEIXIN is to shoulder the responsibility of Brush Making Machine . Get price! We should abide by the tenet of Brush Making Machine . Get price!
- With 5.7 LCD screen,Chinese and English interface.
- Supports data switching.The controller can be used as a U-Disk,and it also can be connected with U-Disk.
- Convenient to adjust the hole position with the handwheel.
- Long life , nice feel,and reliable keypad.
- Safe to operate.With alarming fuction ,the system will give an alam and stop to run when the machine fails.
- Full Featured, Editing functions of processing data, such as ADD, ALT,INSERT,DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.
- Easy to operate and program.
- Large capacity,it can store 2000 programmes and each programme can imput 100,000 processing data.
- Convenient to find the specific program by choosing the program number.
- Standard designed circuit reduces the line interference and makes sure send the correct singal.
- You can confirm whether the hole postion is right by step test after the program is saved.
- Reasonable designed mechanical part position makes the machine good features.
- Standard spare parts offered.
- Spare parts are all made by our factory.It is very easy to replaceable.
| Item | Model | BM-CNC2Z01P |
| 1 | NO. of axis | 2-axis |
| 2 | The stroke of X axis | 300mm rovide flexible customize for customer. |
| The stroke of Y axis | 200mm rovide flexible customize for customer. | |
| 3 | Setting of Worktable | high-precision straight-line rail and ball screw,steady and durable. |
| 4 | Material of Brush Handle | Polyethylene, polystyrene, return materials, wood |
| 5 | Material of Filaments | PP,nylon,bristle,stainless steel,brass wire |
| 6 | Application | To tuft varieties of flat plastic brushes |
| 7 | Diameter of Filaments | 0.08mm-1.2mm |
| 8 | The length of filament(outside the hole) | 35mm |
| 9 | Diameter of hole | 2mm-8mm |
| 10 | Colors of Brush Filaments | single color or double colors |
| 11 | Maximum Tufting Speed | 5 holes/second |
| 12 | AC motor | Delta Brake Motor |
| 13 | Type&Brand of Driver/Motor | stepper motor&driver , can adopt some brand motor&driver requested by users. |
| 14 | Adjust Speed | Frequency-conversion stepless-adjustable speed |
| 15 | Replaceable Fixture | FMS type. It can be easily changed to make other kinds of brushes. |
| 16 | Head mode | Flat |
| 17 | Programme Storage | Store 2000 programme,each can imput 100 thousand processing data. |
| 18 | Program System | CNC system,high precision,stability and efficiency |
| 19 | Dimension(L*W*H) | 850×850×1200mm |
| 20 | Gross weight | 280KG |
| 21 | Power | Single-phase 220v , 3-phase 220v or3-phase 380v, 50-60Hz |
| 22 | Total power | About 800w |
| 23 | Compressed Air Pressure | 0.6-0.8Mpa |
Please feel free to contact us if you have interested in our products.
We will reply you ASAP!
Quality assurance, price concessions, welcome consultation !
A leader in this industry, specializing in brush making machine line for more than 37 years.
