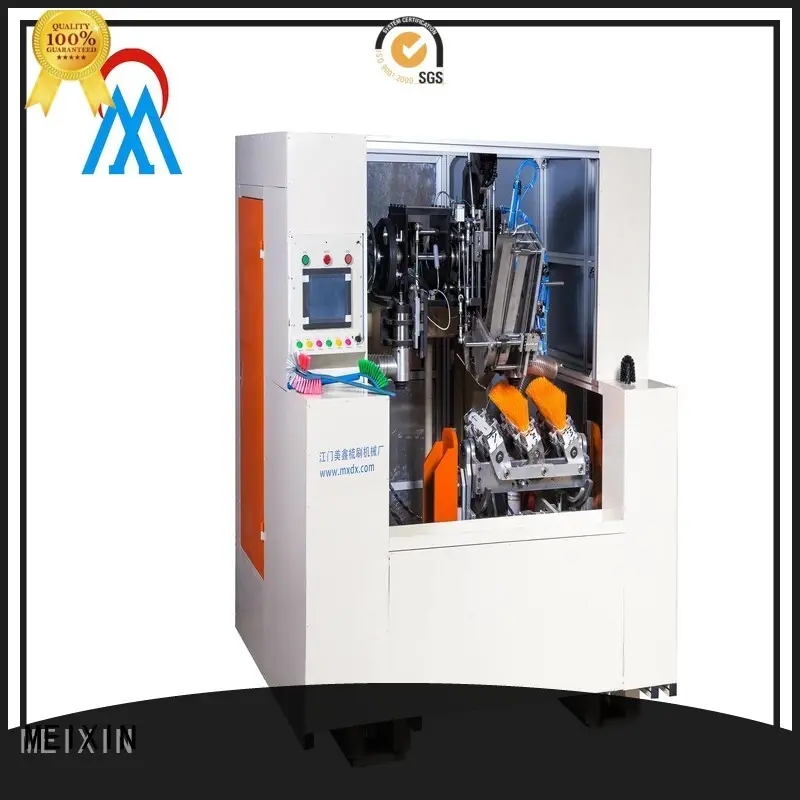

Brush Making Machine directly sale for industrial brush MEIXIN
1. MEIXIN [拓展关键词 is fully tested under a series of testing machines. The testing includes illumination intensity, beam angle, and impulse voltage capacity.
2. It has the required wear resistance. The wear of its contacting surfaces is reduced by the lubrication of the surfaces, increasing the strength of the working surfaces.
3. Supplying service for customers will also contribute to the development of MEIXIN.
A/ brand of motor in the machine.
1.Delta inverter, panasonic servo motor.
2.Taiwan TBI ball screw guide way and Taiwan HIWIN.
3.Schneider low voltage electrical appliances.
4.JAPAN CLOSE WITH BEARING.
5.Germany SENLIMA brake motor.
6.SHENZHEN ATECH controller
B/Controller features:
1. its provided with manual data input as well as teach in data input method.
2. auto or step operation.
3. speed of drilling and tufting is controlled by inverter for various speed adjustment.
4. test mode to test machine if functions properly.
5. editing features of,delete or copy.
6. Normal working or positioning testing.
7. drilling and tufting excessive pressure alarm.
8. production speed is adjustable.
C/special features:
1. FMX fixture allows fast change over for a new brush tufted production. This machine with 3 grippers.
2. Independent 5aix motion,suitable for any wooden or plastic brush handles tufting.
Company Features
1. With a renowned ability in developing and manufacturing 5 Axis Brush Making Machine , JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has stood firmly in the fierce domestic markets.
2. JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY has strong technical force and high standards of product quality.
3. Allow JIANGMEN MEIXIN COMB BRUSH MAKING MACHINE FACTORY to know your needs we will present you the best options available. Get quote! MEIXIN has made up the mind to acquire the Brush Making Machine marketplace. Get quote! MEIXIN has bee appreciated by more customers for its high quality broom making equipment and considerate service. Get quote! MEIXIN brand aims to provide high quality service for customers. Get quote!
CE certificated wood broom brush making machine/wood drilling tufting machine
Technical characteristics:
1, Equipped with two drilling heads and one tufting head;
2, Equipped with two high speed drilling heads: hole diameter from Φ3.0mm up toΦ6.0mm, and tufting tools from min.Φ3.0mm up to Φ6.0mm;
3, Hair by: round nails or flat nails;
4, three types of platform can be chosen as follows:
Platform for radial, parallel and radial/parallel tufted brushes
Platform for bowl brushes and semi-spherical brushes
Platform for rollers and hair brushes
5, PLC and Touch Panel Control System, displays in either Chinese or English;
6, Allow saving as 2000 procedure and easy for the creation of new models;
7, our machine can produce either one color or two color brush, and also drilling or tufting separately.
8, setting of worktable: high-precision straight-line rail and ball screw, steady and durable.
9, Material of Brush Handle: Poly styrene, return materials, wood
10, Material of filaments: PP, PET, PVC, and STEEL WIRE
11, Application: To make varieties of toilet brush and radial brushes
12, High Speed Motor: Delta High-Speed Motor
13, AC motor: Delta Brake Motor
14, Type & Brand of Drive/Motor: Delta servo motor by default, can adopt some brand motor & driver requested by users.
15, Adjust Speed: Frequency-conversion stepless-adjustable speed
16, Replaceable Fixture: FMS type. It can be easily changed to make other kinds of brushes.
17, Head mode: Anchor or Staple
18, Program System: CNC system, high precision, stability and efficiency
Technical parameters
Maximum production speed | 450 holes/minute |
The maximum filament length | 240mm |
Dia. Of tufting holes | Φ3.0mm-φ6.0mm |
Machine size | 2.5m*1.4m*1.98m (L*W*H) |
Power consumption | 3000W |
Driving motor | AC Servo Motor |
Power Supply | Three-phase 380V |
Weight(gross weight) | 2.5 Ton |
This set of machine is a professional yarn drawing line, which is mainly used for producing PP, HDPE net yarn, and also can be used for processing other plastic yarns via corresponding adjustment.
This line consists of extruder, cool water tank, the first stretching device, hot water tank, the second stretching device and coiling machine. The matching devices for production process are complete, so it can continuously finish the whole procedures from putting material to coil yarn onto bobbins...
A leader in this industry, specializing in brush making machine line for more than 37 years.
