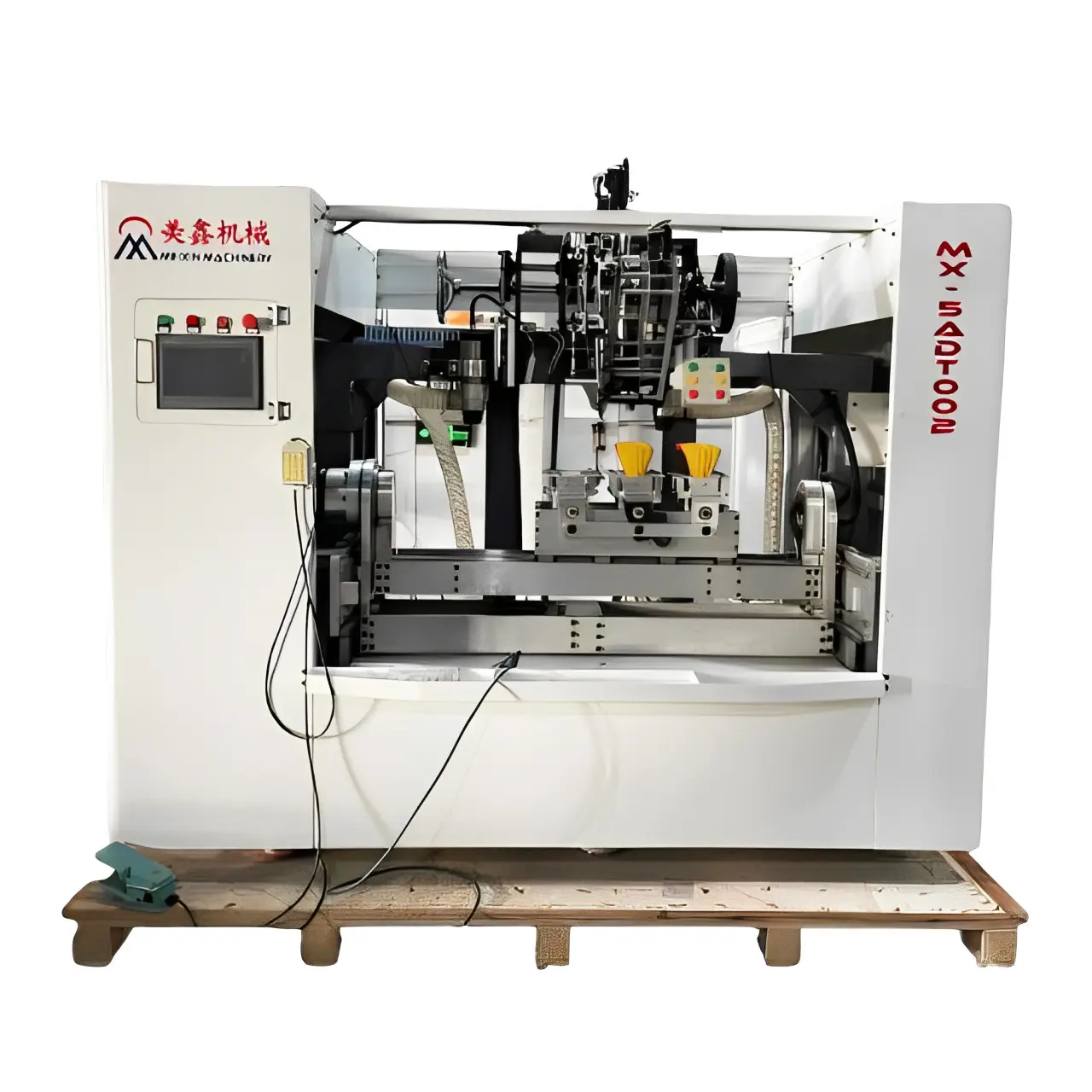

5 Axis 2 Drilling and 1 Tufting Broom Machine1
Min Order: 1 Set
Price Terms: Fob,Exw
Payment Terms: T/T
Model No: Mx192
Brand Name: Meixin
Delivery Time: Within 45 days after receive the deposit
Original: Jiangmen China
A/ BRAND OF MOTOR IN THE MACHINE
1. Delta inverter, panasonic servo motor.
2. Taiwan tbi ball screw guide way and taiwan hiwin.
3. Schneider low voltage electrical appliances.
4. Japan close with bearing.
5. Germany senlima brake motor.
6. Shenzhen atech controller.
PRODUCT PARAMETER
|
Travel of X axis |
1000mm |
|||
|
Travel of Y axis |
300mm |
|||
|
The swing of Z axis |
360° |
|||
|
The swing of B axis |
120° |
|||
|
The height of Aaxis |
300MM |
|||
|
Voltage |
220v or 380v |
|||
|
Dia of holes |
5-7 holes/sec |
|||
|
Dia of fiber |
0.2 -1 mm |
|||
|
Fiber box |
2 colors |
|||
|
Filament outside holes |
50-140mm |
|||
|
Type of handle |
Cylindrical shapen, with flat and curved surface |
|||
|
Productivity |
3200-3500 pcs / 10 hours |
|||
|
Material of filament |
Pp, nylon, wire, stainless steel, wire, bristles |
|||
|
Plc size |
5.7inch (Chinese & English) 50-60HZ |
|||
|
Data input for tufting |
Teach-mode or digits type |
|||
|
Transactio n mothed |
Exw, fob, cif, cfr |
|||
|
Payment details |
40% prepay by t/t, 60% pay by t/t before shipment. |
|||
|
Delivery time |
Within 45 days after receive the deposit |
|||
|
Warranty |
Controller is one year, others part of machine engineer available to send to there to repair the machines |
|||
|
Spare parts |
Tufting needles: 5 pcs, hair mouth: 3 sets, cutter: 2 sets, pulling knife: 2 pcs, alloy: 2 pcs |
|||
B/CONTROLLER FEATURES
● It's provided with manual data input as well as teach in data input method.
● Auto or step operation.
● Speed of tufting is controlled by inverter for various speed adjustment.
● Test mode to test machine if functions properly.
● Editing features of , delete or copy.
● Normal working or positioning testing.
● Drilling and tufting excessive pressure alarm.
● Production speed is adjustable.
C/SPECIAL FEATURES
1. FMX fixture allows fast change over for a new brush tufted production. This machine with 3 grippers.
2.Independent 5aix motion,suitable for any wooden or plastic brush handles tufting.
