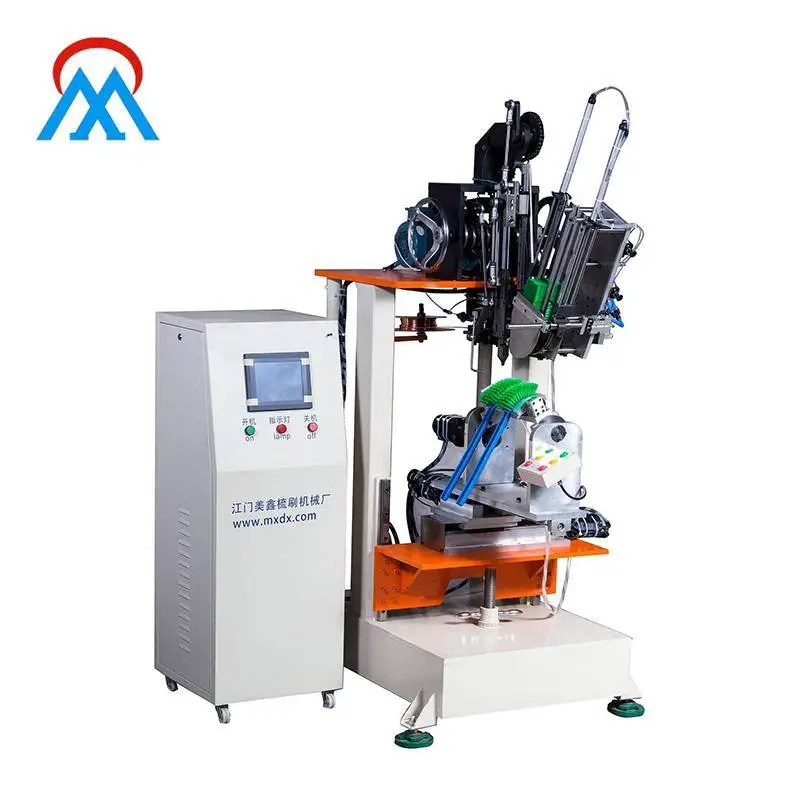

3 Axis Hockey Brush Making Machine
SPECIAL FEATURES
❶ FMX fixture allows fast change over for a new brush tufted production. This machine with 2 grippers.
❷ Independent 3 aix motion, suitable for plastic hokey brush handles tufting.
❸ This machine with the new design of tufting. Easy operate.
❹ High speed, working around 2000 pcs/10 hours.
PRODUCT PARAMETER
| Travel of x axis | 1000mm |
| Travel of y axis | 300mm |
| The swing of z axis | 360° |
| The swing of b axis | 120° |
| The height of A axis | 300mm |
| Voltage | 220v or 380v |
| Dia of holes | 5-7 holes/sec |
| Dia of fiber | 0.2 -1 mm |
| Fiber box | 2 colors |
| Filament outside holes | 30-50mm |
| Type of handle | Cylindrical shapen, with flat and curved surface |
| Productivity | 2000pcs/ 10 hours |
| Material of filament | Pp, nylon, wire, stainless steel, wire, bristles. |
| Plc size | 5.7inch (Chinese & English) 50-60HZ |
| Data input for tufting | Teach-mode or digits type |
| Transactio n mothed | Exw, fob, cif, cfr |
| Payment details | 40% prepay by t/t, 60% pay by t/t before shipment. |
| Delivery time | Within 45 days after receive the deposit |
| Warranty | Controller is one year, others part of machine engineer available to send to there to repair the machines. |
| Spare parts | Tufting needles: 5 pcs, hair mouth: 3 sets, cutter: 2 sets, pulling knife: 2 pcs, alloy: 2 pcs. |
A/ brand of motor in the machine
1.
Delta inverter, Panasonic servo motor.
2.
Taiwan TBI ball screw guide way and Taiwan HIWIN.
3.
Schneider low voltage electrical appliances.
4.
Japan close with bearing.
5.
Germany SENLIMA brake motor.
6.
SHENZHEN ATECH controller
B/CONTROLLER FEATURES
A leader in this industry, specializing in brush making machine line for more than 37 years.
